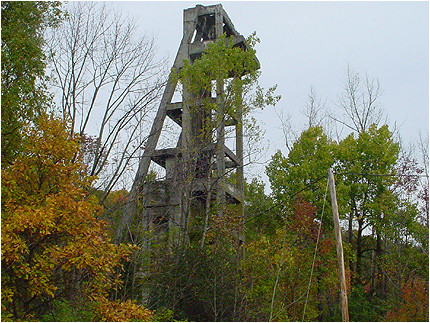

 The concrete headframe to the Scott Mine seen in 2004. |
Scott MineThe Scott Mine was named after Thomas A. Scott, a director of the Sterling Iron and Railway Company. The mine began operations shortly after the end of the Civil War. In a single year in 1880, 5,783 tons of magnetite ore were removed. The mine was originally worked through an inclined shaft sunk along the dip. At the surface the incline was gradual but after only a short distance, plunged 85 degrees. After the Ramapo Ore Company took over operations in 1918, a new vertical shaft was sunk to a depth of 600 feet and 400 feet north of the aforementioned entrance. A headframe was erected to serve this concrete lined shaft that connected with the 180 foot and 345 foot levels. |
|
|
|
